Rotating Eye Bolt FRENO LINKBOLT
Utility Model No. 3116260
Choose the right FRENO LINKBOLT
1: Choose by Type
| Strong Compact Type | JIS Bolt Corresponding Type |
 FRENO LINKBOLT A Type |
 FRENO LINKBOLT B Type |

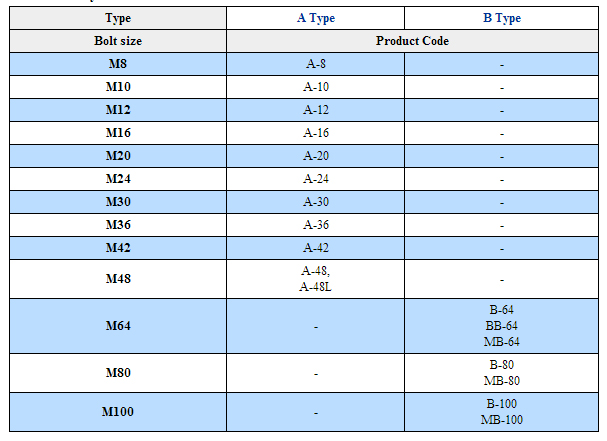

2: Choose by Bolt Size
 |
* We can offer you other bolt sizes on request.
3: Choose by Working load Limit (WLL)
 |
>>>See table of working load limits according to lifting method
FRENO LINKBOLT Features & Specifications

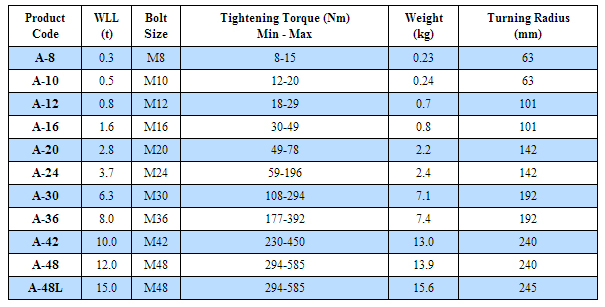

FRENO LINKBOLT A Type
Strong Compact Type
Higher working load limit (WLL) compared to a conventional eye bolt of the same bolt size, therefore requires smaller thread hole diameters.
Thread holes can be processed easier and choosing the position of thread holes becomes more convenient.
- light, compact design
- Available in bolt sizes M8 (0.3ｔ) to M48 (15.0 t)
>>>Working load limits according to lifting method
 |

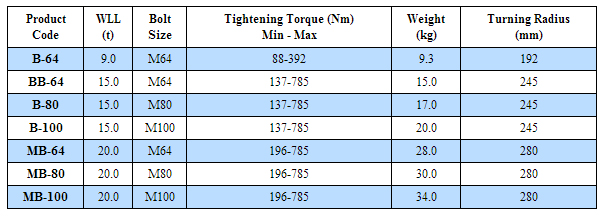

FRENO LINKBOLT B Type
JIS Eye Bolt Corresponding Type
This type has the same bolt sizes and strength as a conventional JIS (Japanese Industrial Standard) eye bolt
It can be attached to the same threads you use for conventional eye bolts and - because of its rotating link - increases lifting safety.
- Available in bolt sizes M64 (9.0ｔ) to M100 (20.0 t).
- For threads smaller than M64 please use Freno Linkbolt A Type.
>>>Working load limits according to lifting method
 |

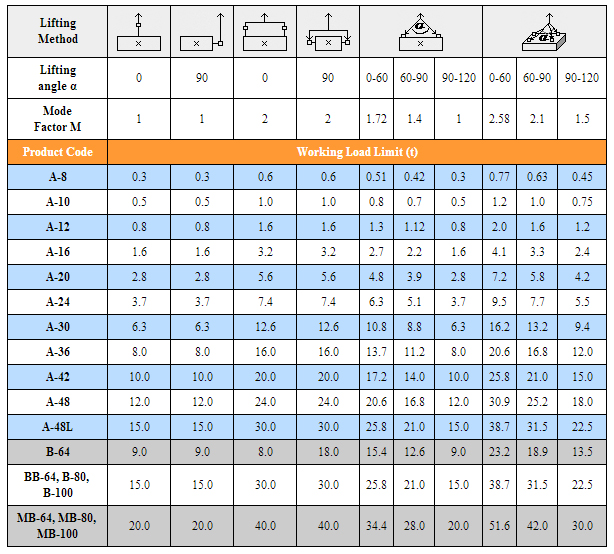

Working Load Limits According to Lifting Method (Safety Factor 5:1)
 |
